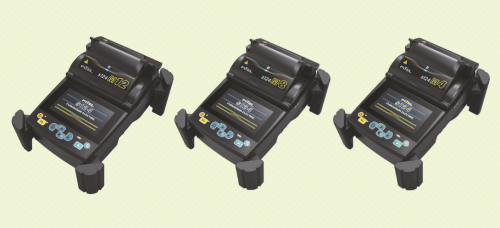

S123C Handheld Fusion Splicer & S123M Ribbon Fiber Fusion Splicer

s123v2 S123M
The FITEL Fusion Splicer S123 series are compact designed fusion splicers. S123C Ver.2 Fusion Splicer splices single fiber, and S123M Ver.2 splices single fiber, 2-ribbon fiber, 4-ribbon fiber, 8-ribbon fiber and 12-ribbon fiber. After setting the prepared fibers, S123C/M4 Ver.2 automatically feeds the fiber ends and inspects their cleave condition, axis offset. Then the S123C/M4 Ver.2 discharges the arc to melt the glass and butts the end together. The S123C/M4 Ver.2 has the heater applied 40mm and 60mm protection sleeve for reinforcing the spliced fiber. The S123C/M4 Ver.2 can be powered by the AC adaptor and Battery. The Battery is made of Li-ion cells and is charge by the S123C/M4 Ver.2 body and the special charger.

With their low profile design and light weight bodies the S123 series offer not only ribbon fiber splicing but also single fiber splicing with outstanding mobility and extreme ease-of-use. In addition, the rugged body is designed to endure harsh operating conditions by improving shock/impact resistance with rubber pads embedded on 4 corners of the splicer body. It achieves water resistance compliant IPX2 and dust resistance compliant IP5X.
ribbon splice view

The fast splice time and protection sleeve shrink time offers a highly efficient work environment. Large battery capacity makes it possible to perform 70 cycles of splicing and heating ( 160 cycles with two batteries ), while it offers SOC solution as well. By combining portability, ease-of-use, improved speed and durability, the S123 series become and excellent option for use in the conventional telecommunications industry.
